Busbar processing machines
Sixteen models across nine families, covering punching, shearing, bending, twisting, embossing, chamfering, deburring and busway forming.
Busbar processing centres
Fully automatic punching and shearing centres for copper and aluminium busbar, with 800 kN on both units, 24 to 36 tool stations, multi-bar loading and integrated nesting.
IMAC-CENTER 60
Automatic busbar processing centre, 800 kN, 24 tool stations
IMAC-CENTER 60 is a fully automatic processing centre for copper and aluminium busbar. The punching and shearing units each develop 800 kN, and the ma…
IMAC-CENTER 80
Full-capacity 800 kN processing centre, 36-station die library
IMAC-CENTER 80 is the full-capacity configuration of the processing centre. Punching and shearing units each develop 800 kN on bar from 15 to 300 mm w…
Punching and shearing machines
CNC punching and shearing machines from 400 to 800 kN, for bar up to 6000 × 300 × 20 mm, with German in-line die libraries and three shear modes.

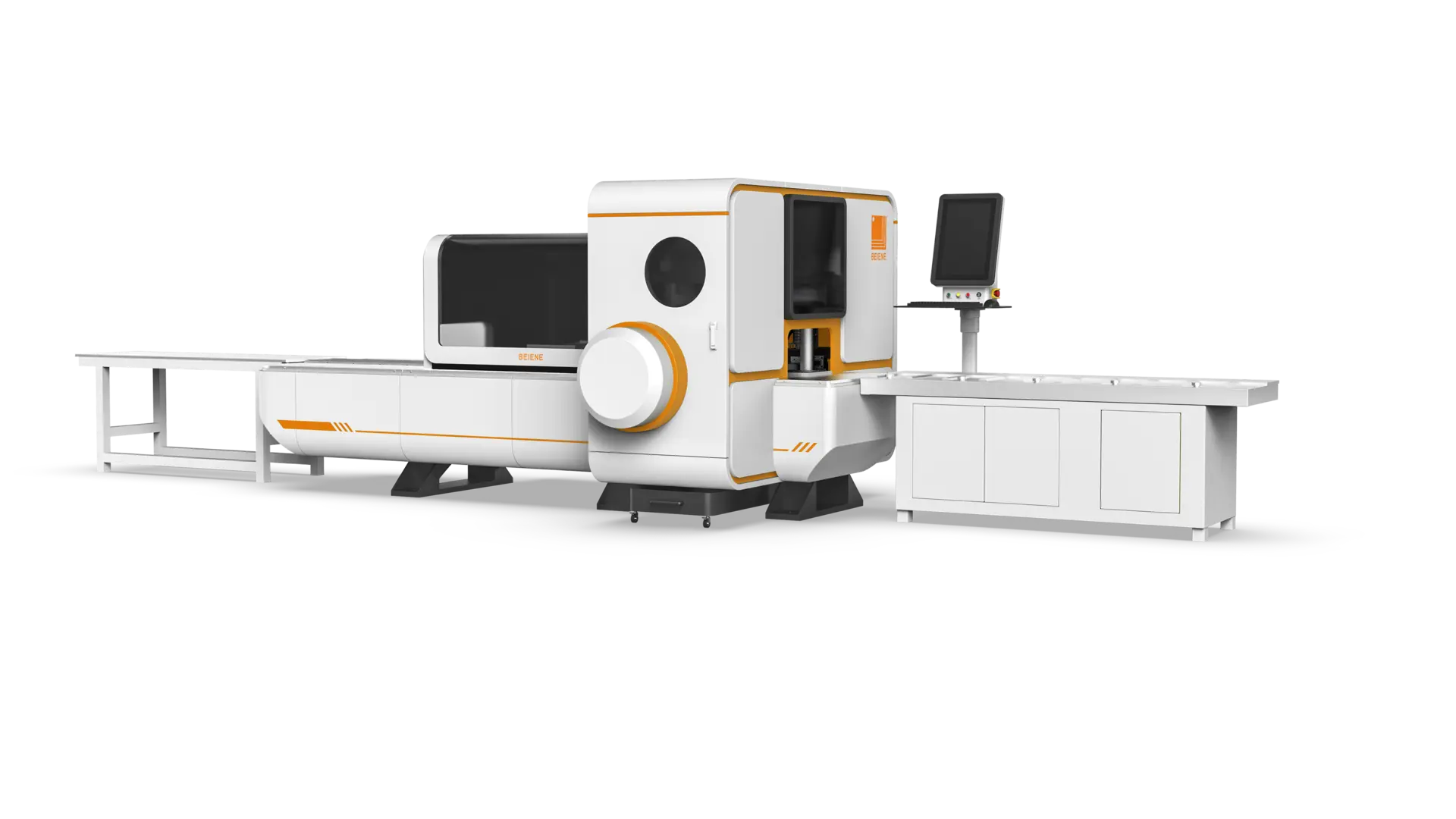

EMAC-BP-40
400 kN CNC busbar punching and shearing machine
EMAC-BP-40 is a CNC punching and shearing machine for copper and aluminium busbar up to 6000 × 205 × 12 mm. Both the punching and shearing units devel…

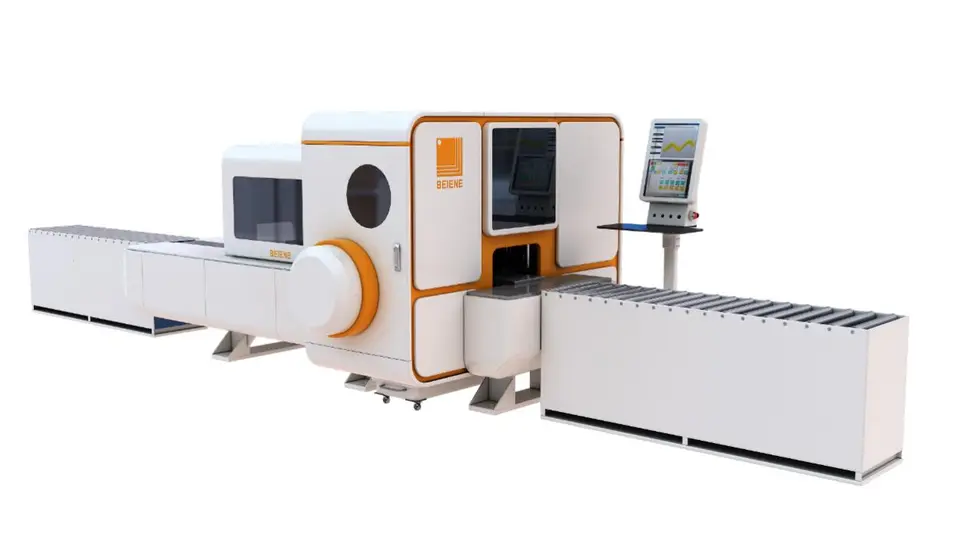

EMAC-BP-60
600 kN CNC busbar punching, shearing and embossing machine
EMAC-BP-60 is a CNC punching, shearing and embossing machine for copper and aluminium busbar up to 6000 × 210 × 16 mm. Punching and shearing units eac…
EMAC-BP-80
800 kN CNC busbar punching and shearing machine
EMAC-BP-80 is the highest-capacity machine in the punching and shearing range. Both units develop 800 kN on bar up to 6000 × 300 × 20 mm, with a maxim…
Bending machines
Three-dimensional bending machines rated 400 kN, holding ±0.1° with electronic springback compensation, in hybrid hydraulic and pure servo configurations.
EMAC-BB-H12
Hybrid hydraulic 3D busbar bending machine, 400 kN, ±0.1°
EMAC-BB-H12 is a three-dimensional busbar bending machine with a hybrid hydraulic station. Nominal force is 400 kN and bending capacity is 200 × 16 mm…
EMAC-BB-S12
Servo 3D busbar bending machine, 400 kN, ±0.1°, no hydraulics
EMAC-BB-S12 is the pure servo configuration of the 400 kN bending platform, holding the same ±0.1° bending accuracy on bar up to 200 × 16 mm. Maximum …
All-in-one machines
Single machines combining punching, shearing, bending, twisting and embossing, rated 300 to 600 kN, with optional six or eight station turrets.

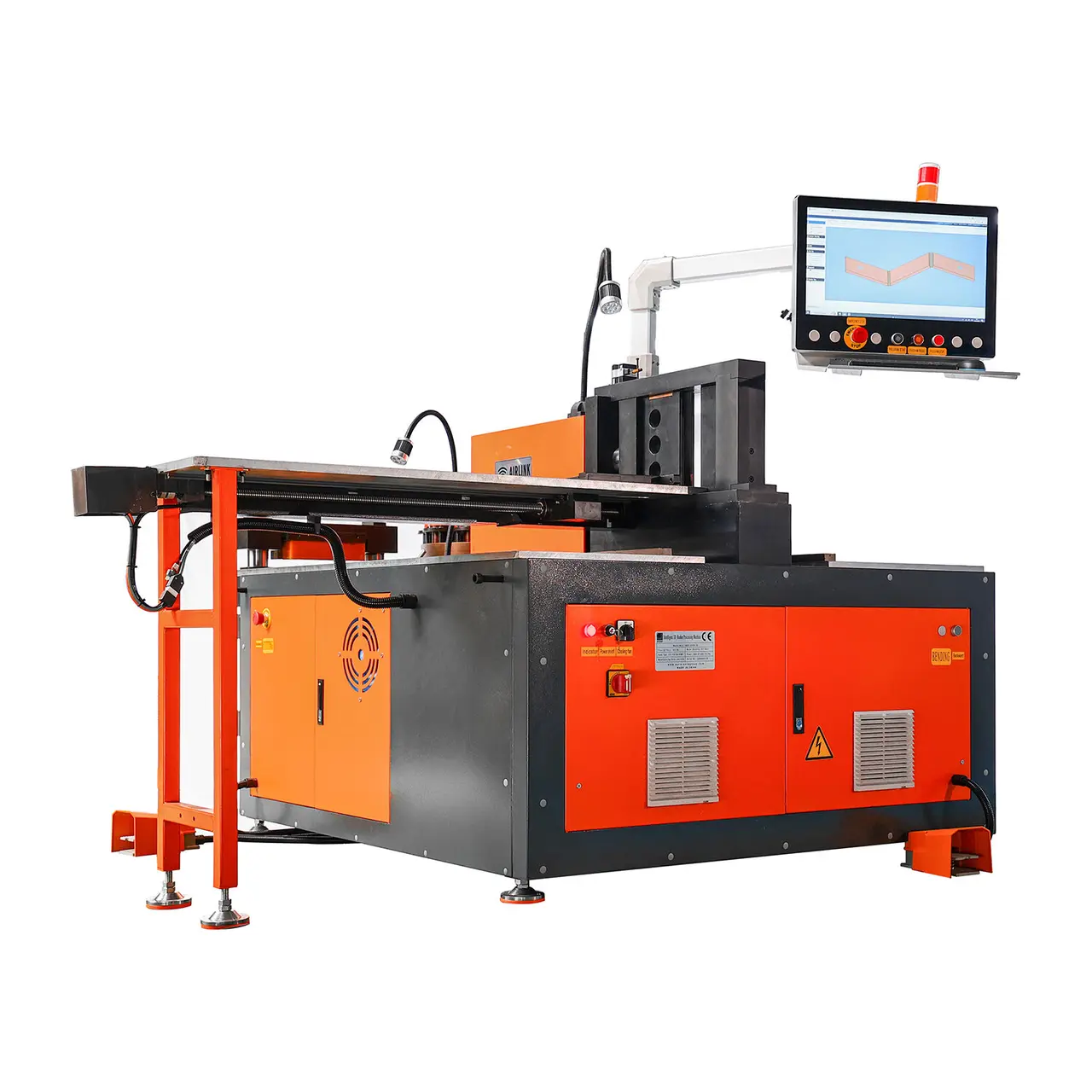

SMART-303CNC-S
300 kN all-in-one punching, shearing, bending and forming machine
SMART-303CNC-S combines punching, shearing, bending, twisting and embossing on a single 300 kN machine with a 1500 × 1200 × 1200 mm footprint. Punchin…

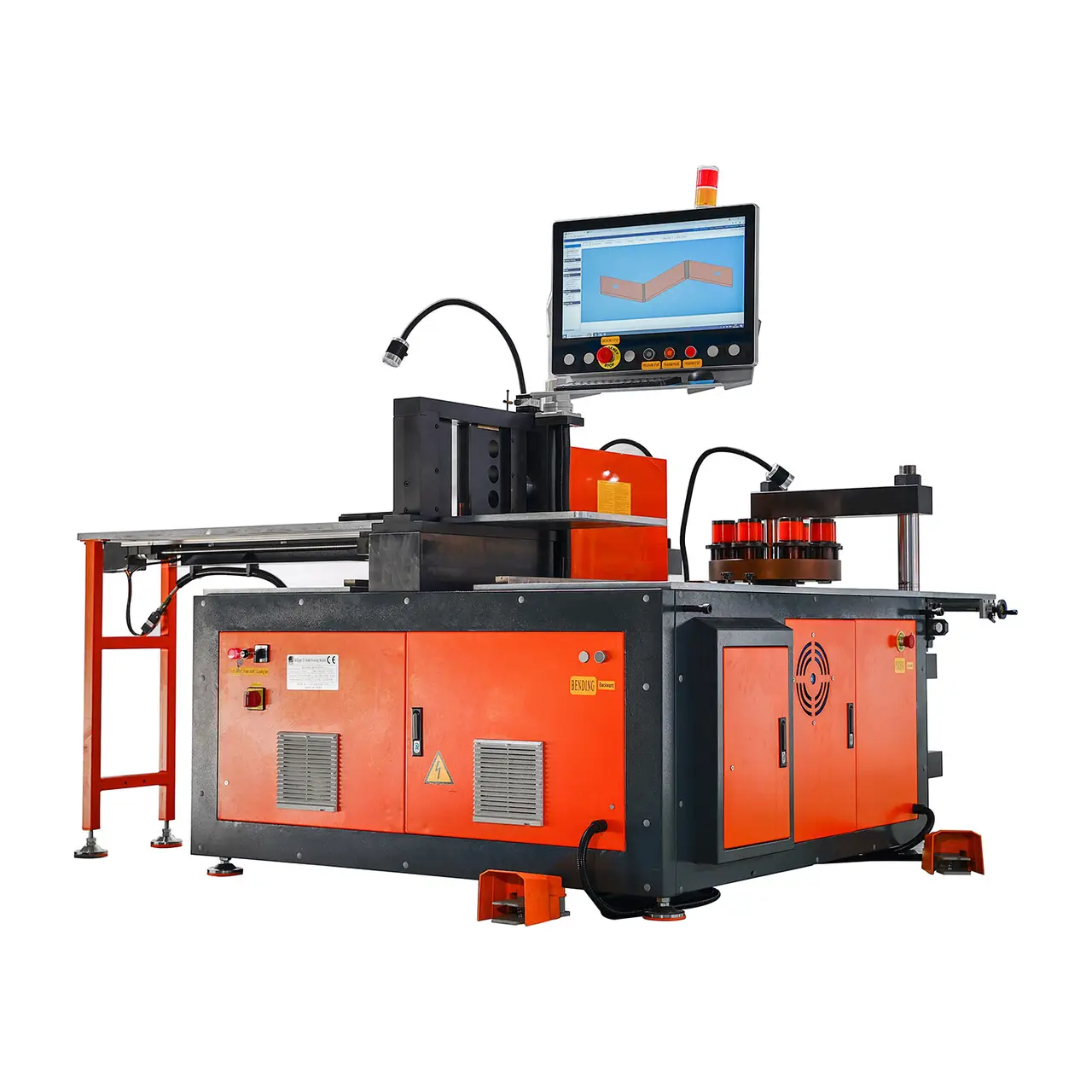

SMART-603CNC-S
600 kN all-in-one busbar processing machine, 260 × 20 mm
SMART-603CNC-S is the 600 kN configuration of the all-in-one platform. Punching and cutting capacity is 260 × 16 mm, flatwise bending 260 × 20 mm and …
SMART-603CNC-6S / 8S
600 kN all-in-one machine with 6 or 8 station turret
SMART-603CNC-6S/8S is the 600 kN all-in-one machine fitted with a six or eight station punching turret. Capacity matches the single-station machine at…

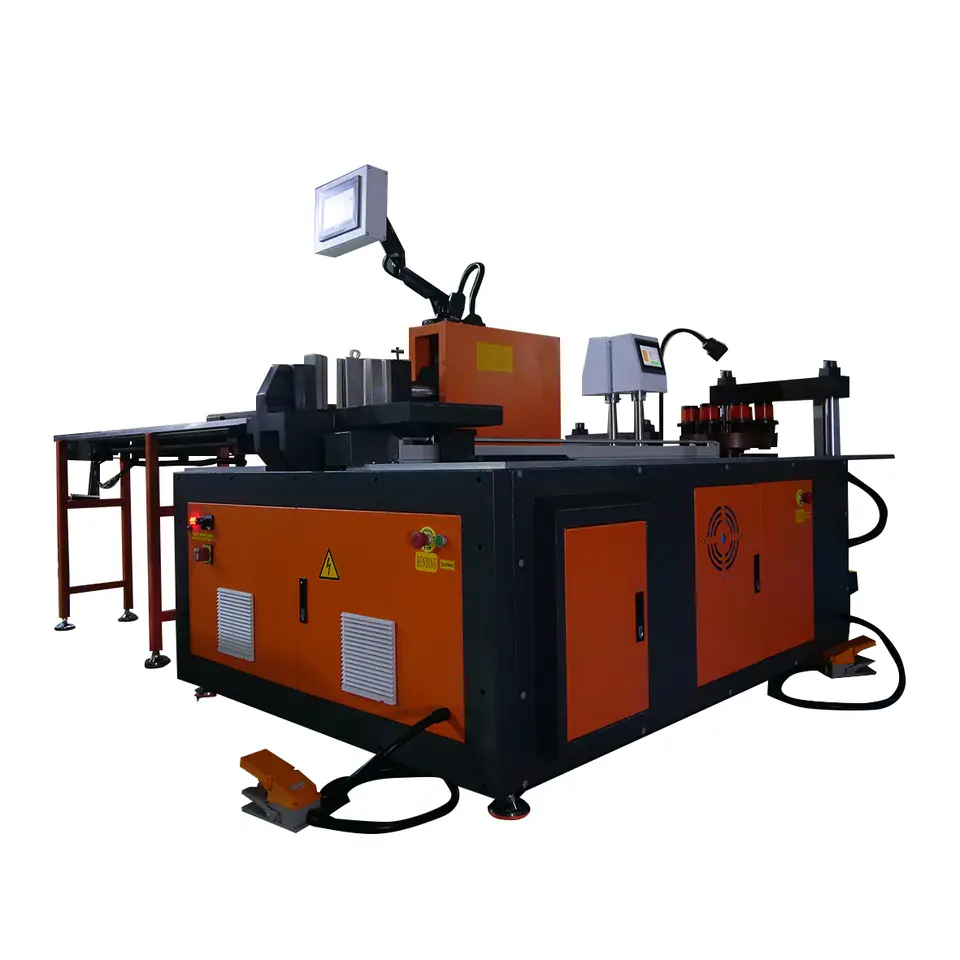

BPM-303CNC-6S / 8S
350 kN standard three-in-one busbar processing machine
BPM-303CNC is the standard three-in-one busbar machine. Punching, shearing and bending units each develop 350 kN on copper and aluminium up to 15 mm t…
Chamfering and edge-machining centres
Three-axis arc machining centres with automatic tool change, producing edge radii in both the width and thickness directions in one setup.
Deburring and polishing machines
Two-stage grinding machines for bar from 0.5 to 50 mm thick, combining burr removal with oxide removal ahead of plating.
Busduct and busway machines
Sawing, joggling and flaring centres for busway housings, and dedicated fish plate punching, stretching and cutting to better than ±0.1 mm/m.
EMAC-BDM-S / M / H
Busway sawing, joggling and flaring centre, 300 kN
EMAC-BDM is a busduct processing centre that saws, joggles and flares busway conductors in a single pass. Joggling force is 300 kN and the machine acc…
EMAC-BDM-SP
CNC fish plate punching, stretching and cutting machine
EMAC-BDM-SP produces busduct fish plates, performing punching, stretching and shearing in a fixed sequence. Each unit develops 200 kN and hole pitch a…
Handling and storage
Manual transport trolleys through to automatic rail-guided storage systems that feed the processing centre and share stock records with the nesting software.
CART-BB
Manual busbar transport trolley
CART-BB is a manual transport trolley for moving busbar stock between the rack and the machine. It is configured to the bay layout and the bar mix in …
PPY-BB
Automatic RGV busbar transfer platform
PPY-BB is a rail-guided vehicle platform that transfers busbar between storage and the processing centre without an operator. It is configured to the …
SMARTBAR-BB
Automatic RGV busbar storage and loading system
SMARTBAR-BB is an automatic rail-guided storage and loading system feeding the IMAC processing centre directly. Stock records are shared with the nest…
Software
Three-dimensional design, whole-project nesting, oddment reuse and machine-side job management, with MES functions built in rather than supplied as an addition.
SMARTNEST BUSBAR
3D busbar design, nesting and oddment management with built-in MES
SMARTNEST BUSBAR is the design and production software supplied with the machine range. It provides three-dimensional busbar design, conversion of 2D …
SmartDraw
3D busbar drawing and programming
SmartDraw is the drawing layer of the Beiene software suite. It produces three-dimensional busbar geometry that passes directly to a machine program w…
SmartBar
Machine-side busbar job management
SmartBar is the machine-side layer of the software suite, handling job management and scheduling at the machine and linking back to the office through…
