SMARTNEST BUSBAR
3D busbar design, nesting and oddment management with built-in MES
Overview

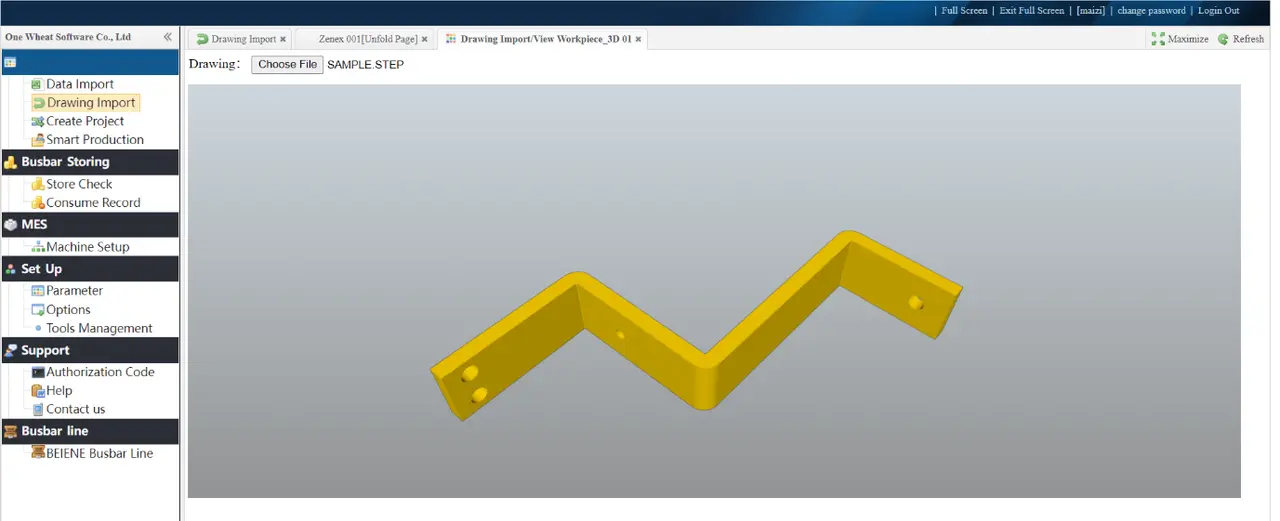

SMARTNEST BUSBAR is the design and production software supplied with the machine range. It provides three-dimensional busbar design, conversion of 2D drawings to 3D, whole-project nesting, oddment storage management with optimised reuse, and calculation of bar demand for a project against current stock. MES functions are built in rather than supplied as a third-party addition. The software reads Pro/E, UG, CATIA and SolidWorks geometry and STEP files, imports job data from Excel, and runs on Windows 7, 10 and 11.
Gallery
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Control | ||
| Platform | Windows 7 / 10 / 11 | |
| Data import | spec.value.excel_import | |
| CAD compatibility | Pro/E, UG, CATIA, SolidWorks, STEP/STP | |
Features
- Design busbars in 3D
- Converts 2D drawings to 3D
- Busbar stock management
- Calculates bar demand for a whole project against stock
- Nests a whole project to minimise residue
- Oddment storage management and optimised reuse
- Imports data from Excel
Frequently asked questions
- What does nesting save?
- Offcut. A shop cutting to drawing without nesting typically scraps around a tenth of its bar. Whole-project nesting with a managed oddment library brings that down substantially, and at copper prices the saving is usually a larger line item than the labour the machine replaced.
