All-in-one machines
SMART-603CNC-S
600 kN all-in-one busbar processing machine, 260 × 20 mm
- Nominal force
- 600kN
- Maximum punching capacity
- 260 × 16mm
- Flatwise bending (W × T)
- 260 × 20mm
Overview
SMART-603CNC-S is the 600 kN configuration of the all-in-one platform. Punching and cutting capacity is 260 × 16 mm, flatwise bending 260 × 20 mm and edgewise bending 125 × 15 mm, with a minimum U-bend inner width of 40 mm. The operation set covers flatwise and edgewise bending, twisting, embossing, cable lug forming, Z and U bends, shearing and punching. Bending accuracy is ±0.2°, installed power 12.6 kW, and the machine occupies 2400 × 2200 × 2100 mm.
Gallery

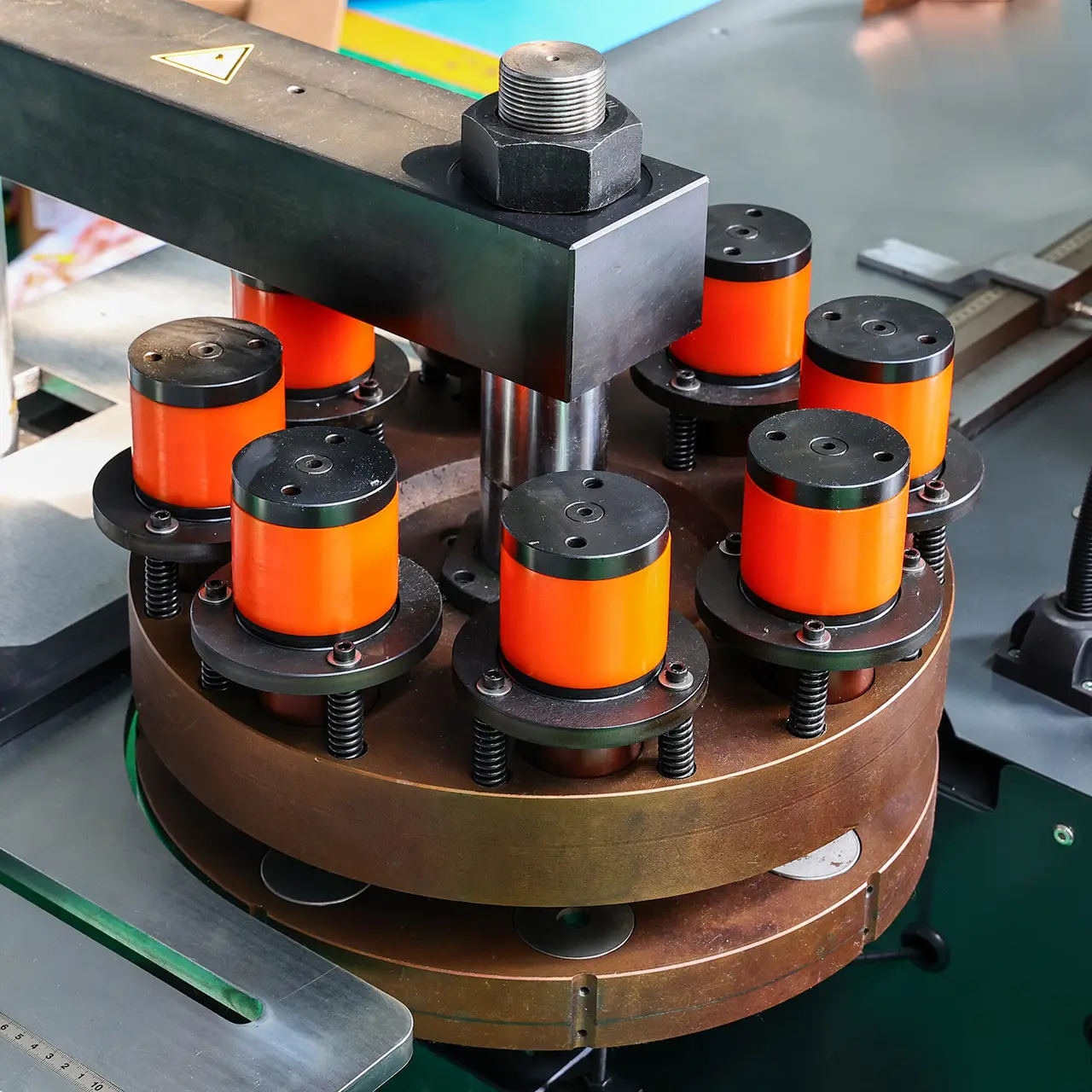

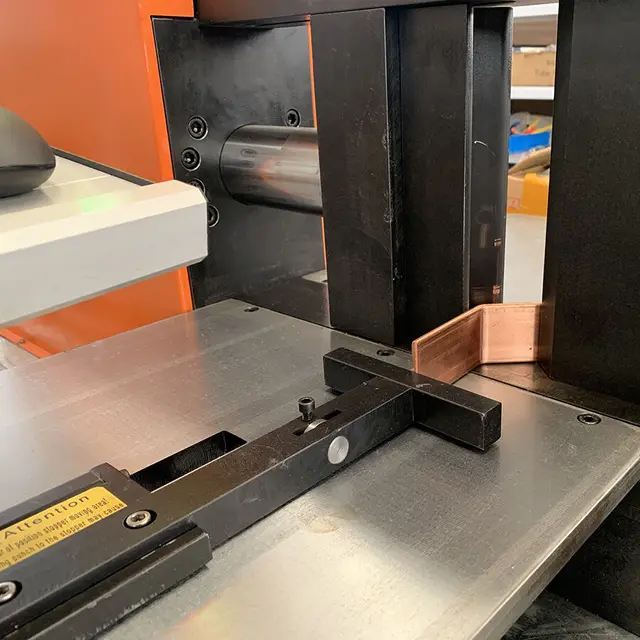

Specifications
| Parameter | Value | Unit |
|---|---|---|
| Force | ||
| Nominal force | 600 | kN |
| Accuracy | ||
| Bending accuracy | ±0.2 | ° |
| Capacity | ||
| Maximum bending stroke | 250 | mm |
| Automatic stroke | 1000 | mm |
| Minimum U-bend inner widthSmaller dimensions on request | 40 | mm |
| Maximum punching capacity | 260 × 16 | mm |
| Maximum cutting capacity | 260 × 16 | mm |
| Maximum bending angle | 90 | ° |
| Flatwise bending (W × T) | 260 × 20 | mm |
| Edgewise bending (W × T) | 125 × 15 | mm |
| Speed | ||
| Side gauge speed (X axis) | 15 | m/min |
| Power | ||
| Total installed power | 12.6 | kW |
| Dimensions and weight | ||
| Machine dimensions (L × W) | 2400 × 2200 × 2100 | mm |
| Machine weight | 2400 | kg |
Features
- Beiene 3D intelligent control centre
- Reads 3D and 2D drawings directly — no re-drawing step
- Fully automatic CNC bending
- Bend sequence simulation before the first part
- AIRLINK real-time drawing and file sharing between office and machine
- Flatwise and edgewise bending, twisting, embossing, cable lug forming, Z and U bends, shearing and punching
- Optional busbar management software
Key components
| Component | Supplier | Origin |
|---|---|---|
| PLC and control | Siemens | Germany |
| Servo motors | Siemens | Germany |
| Servo drives | Siemens | Germany |
| Contactors | ABB | Switzerland |
| Circuit breakers | ABB | Switzerland |
| Linear guideways | HIWIN | Taiwan |
| Ball screws | HIWIN | Taiwan |
| Bearings | NSK | Japan |
| Solenoid valves | Rexroth | Germany |
Frequently asked questions
- Which operations run on one machine?
- Flatwise and edgewise bending, twisting, embossing, cable lug forming, Z and U bends, shearing and punching. For a panel shop bringing busbar work in-house, that covers the great majority of parts without a second machine.
