SMART-303CNC-S
300 kN all-in-one punching, shearing, bending and forming machine
- Nominal force
- 300kN
- Maximum punching capacity
- 160 × 15mm
- Flatwise bending (W × T)
- 160 × 15mm
Overview

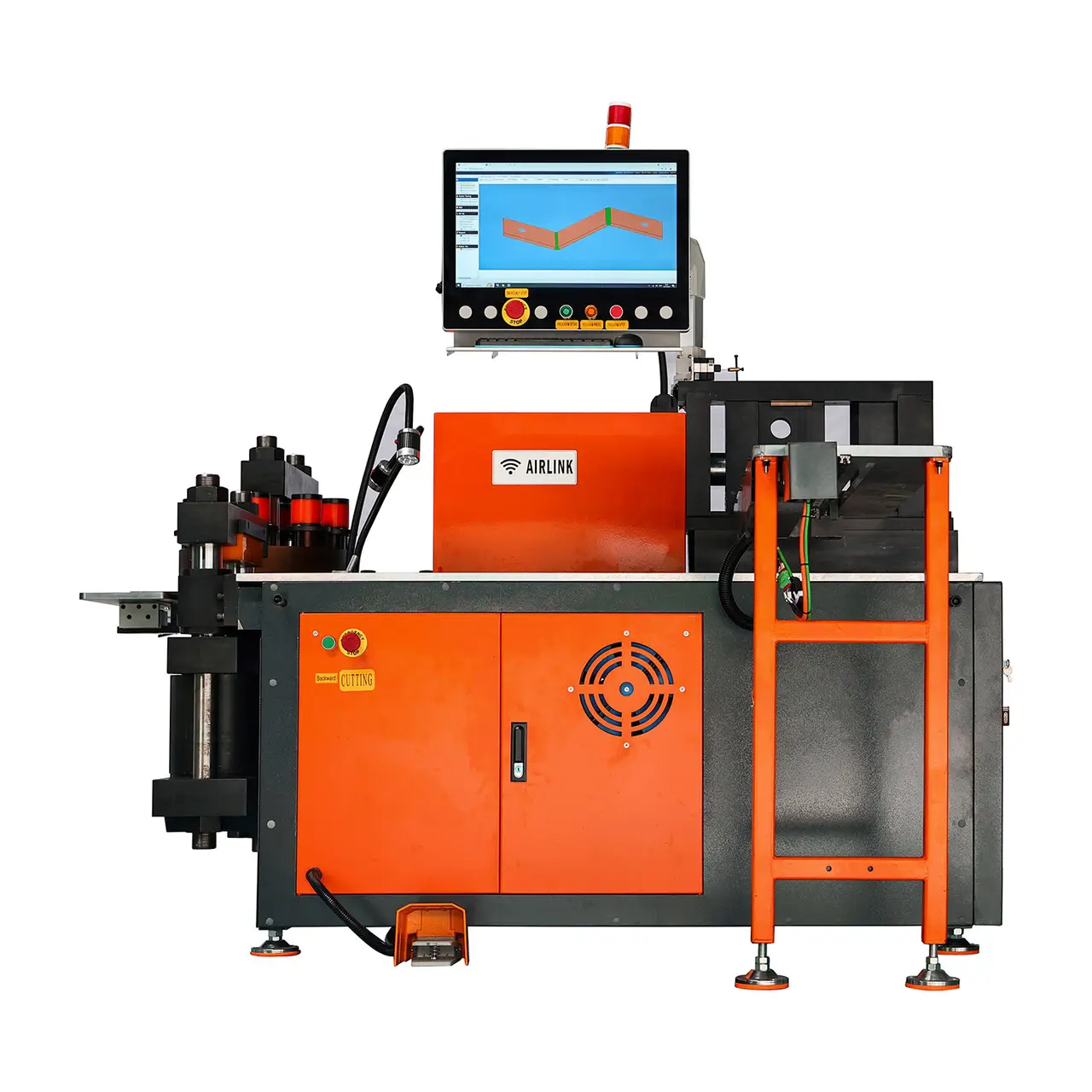

SMART-303CNC-S combines punching, shearing, bending, twisting and embossing on a single 300 kN machine with a 1500 × 1200 × 1200 mm footprint. Punching and cutting capacity is 160 × 15 mm; flatwise bending is 160 × 15 mm and edgewise bending 125 × 15 mm. Bending accuracy is ±0.2° with a maximum bending stroke of 250 mm and an automatic stroke of 1000 mm. The control centre reads 3D and 2D drawings directly and simulates the bending sequence before the first part is formed. Installed power is 12.6 kW.
Gallery

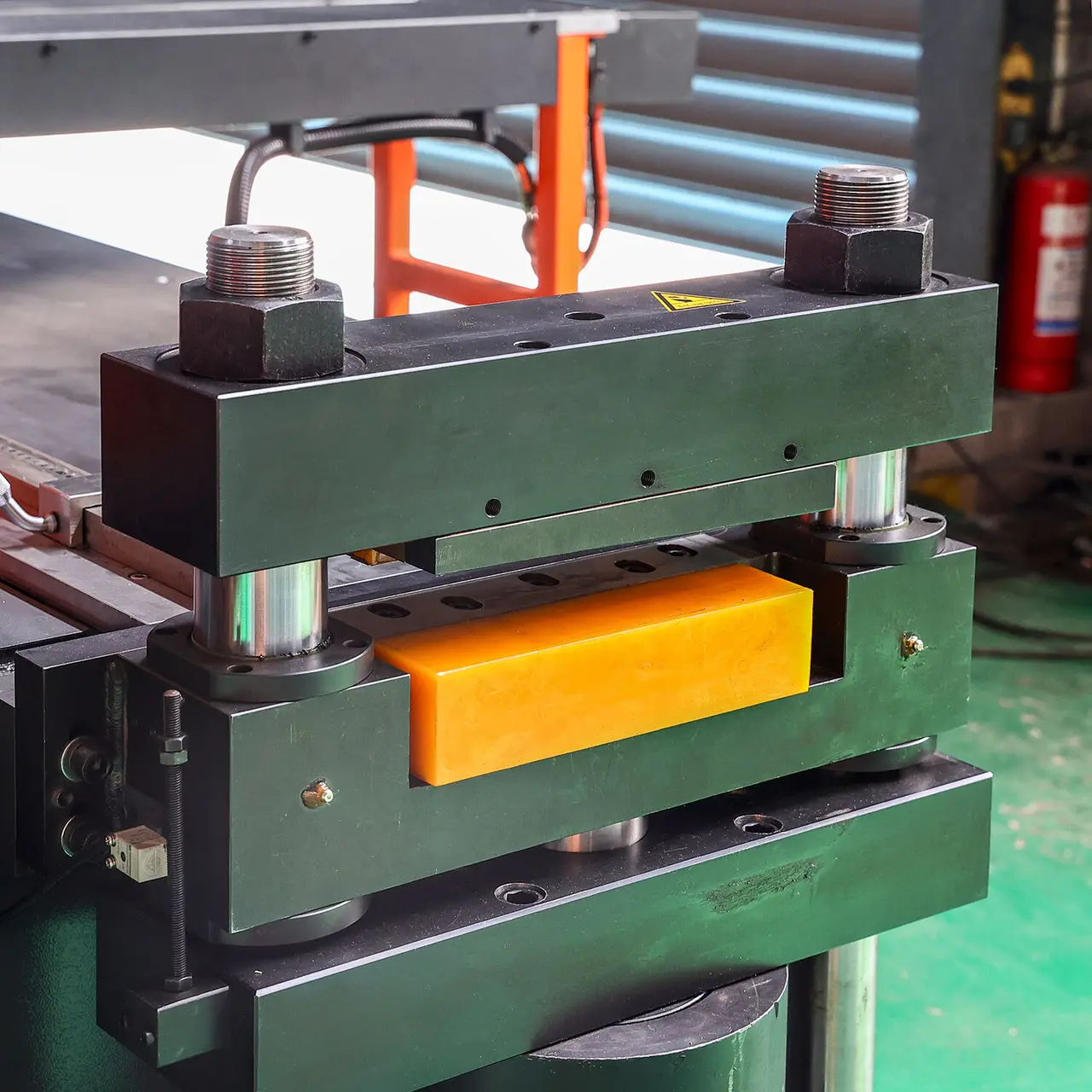

Specifications
| Parameter | Value | Unit |
|---|---|---|
| Force | ||
| Nominal force | 300 | kN |
| Accuracy | ||
| Bending accuracy | ±0.2 | ° |
| Capacity | ||
| Maximum bending stroke | 250 | mm |
| Automatic stroke | 1000 | mm |
| Minimum U-bend inner width | 40 | mm |
| Maximum punching capacity | 160 × 15 | mm |
| Maximum cutting capacity | 160 × 15 | mm |
| Maximum bending angle | 90 | ° |
| Flatwise bending (W × T) | 160 × 15 | mm |
| Edgewise bending (W × T) | 125 × 15 | mm |
| Speed | ||
| Side gauge speed (X axis) | 15 | m/min |
| Power | ||
| Total installed power | 12.6 | kW |
| Dimensions and weight | ||
| Machine dimensions (L × W) | 1500 × 1200 × 1200 | mm |
| Machine weight | 2400 | kg |
Features
- Beiene 3D intelligent control centre
- Reads 3D and 2D drawings directly — no re-drawing step
- Fully automatic CNC bending
- Bend sequence simulation before the first part
- AIRLINK real-time drawing and file sharing between office and machine
- Flatwise and edgewise bending, twisting, embossing, cable lug forming, Z and U bends, shearing and punching
- Optional busbar management software
Key components
| Component | Supplier | Origin |
|---|---|---|
| PLC and control | Siemens | Germany |
| Servo motors | Siemens | Germany |
| Servo drives | Siemens | Germany |
| Contactors | ABB | Switzerland |
| Circuit breakers | ABB | Switzerland |
| Linear guideways | HIWIN | Taiwan |
| Ball screws | HIWIN | Taiwan |
| Bearings | NSK | Japan |
| Solenoid valves | Rexroth | Germany |
Frequently asked questions
- Which operations run on one machine?
- Flatwise and edgewise bending, twisting, embossing, cable lug forming, Z and U bends, shearing and punching. For a panel shop bringing busbar work in-house, that covers the great majority of parts without a second machine.
