All-in-one machines
BPM-303CNC-6S / 8S
350 kN standard three-in-one busbar processing machine
- Maximum output force
- 350kN
- Shearing capacity
- 160 × 15mm
- Total installed power
- 11.37kW
Overview

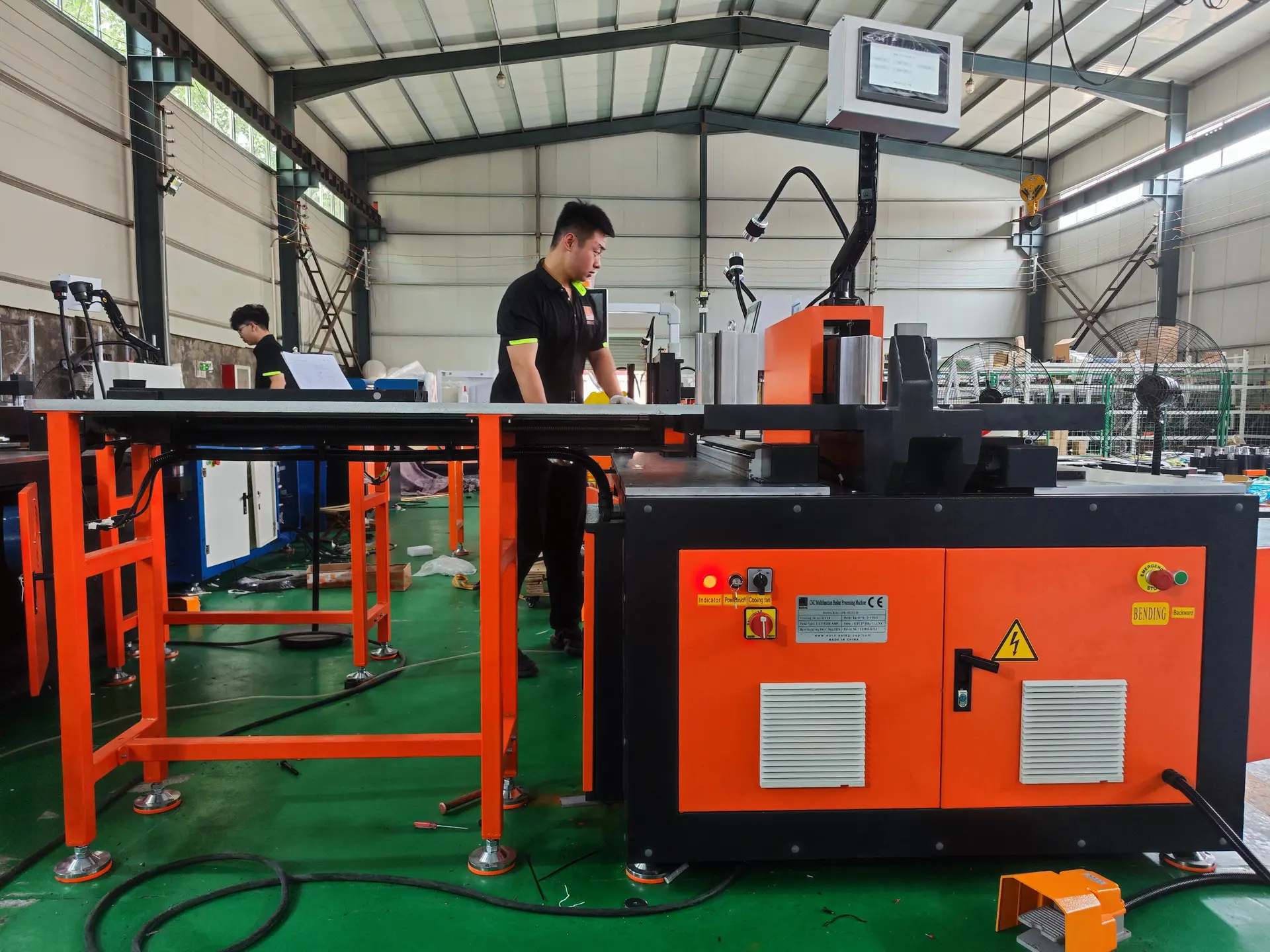

BPM-303CNC is the standard three-in-one busbar machine. Punching, shearing and bending units each develop 350 kN on copper and aluminium up to 15 mm thick, with shearing and bending capacity of 160 × 15 mm and maximum punch diameters of Ø30 below 10 mm thickness and Ø25 to 15 mm. The machine carries a six or eight station turret, three hydraulic stations at 31.5 MPa, Siemens PLC and servo control, and a Windows touchscreen that reads AutoCAD and SolidWorks files. Installed power is 11.37 kW at 380 V and the machine weighs 1460 kg.
Gallery
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Force | ||
| Maximum output force | 350 | kN |
| Capacity | ||
| Punching thickness | 15 | mm |
| Maximum punch diameter | Ø30 (t<10) / Ø25 (t<15) | mm |
| Shearing capacity | 160 × 15 | mm |
| Bending capacity (W × T) | 160 × 15 | mm |
| Tooling | ||
| Turret stations | 6 / 8 | pc |
| Dimensions and weight | ||
| Platform — layer 1 | 1200 × 1000 | mm |
| Platform — layer 2 | 840 × 370 | mm |
| Machine weight | 1460 | kg |
| Power | ||
| Number of motors | 3 + 1 | |
| Total installed power | 11.37 | kW |
| Working voltage | 380 | V |
| Hydraulic stations | 3 × 31.5 | MPa |
Features

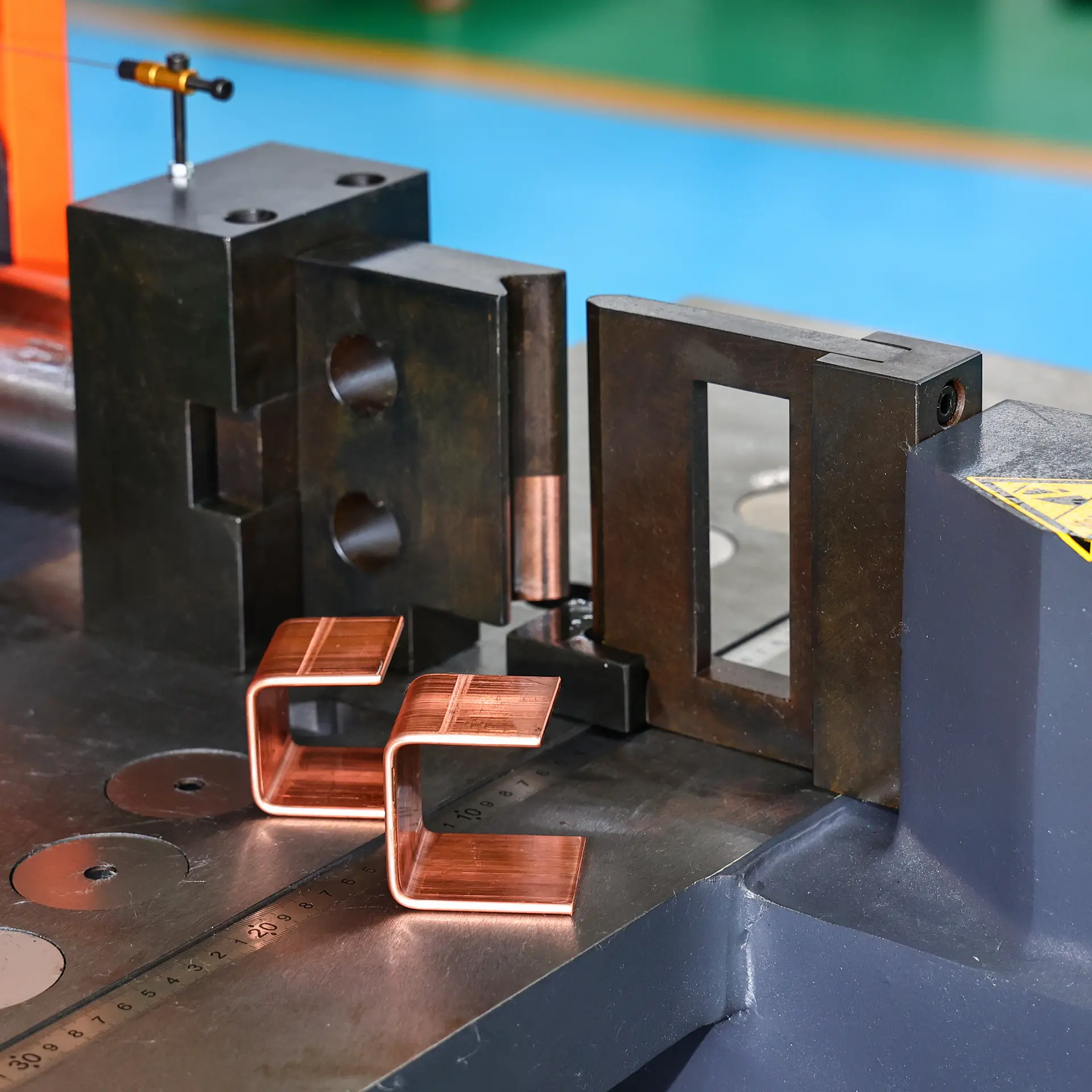

- Flatwise and edgewise bending, twisting, embossing, cable lug forming, Z and U bends, shearing and punching
- Siemens PLC
- Servo control
- Windows touchscreen computer
- Reads AutoCAD and SolidWorks files
- Wi-Fi connectivity, Industry 4.0 ready
Key components
| Component | Supplier | Origin |
|---|---|---|
| PLC and control | Siemens | Germany |
| Servo motors | Siemens | Germany |
| Servo drives | Siemens | Germany |
| Contactors | ABB | Switzerland |
| Circuit breakers | ABB | Switzerland |
| Linear guideways | HIWIN | Taiwan |
| Ball screws | HIWIN | Taiwan |
| Bearings | NSK | Japan |
| Solenoid valves | Rexroth | Germany |
Industries
Standards referenced
Frequently asked questions
- Where does the BPM sit in the range?
- It is the entry point — 350 kN, 160 × 15 mm capacity, and a smaller footprint. It is the right machine for a shop moving off manual work or off outsourcing, and it does the same operation set as the SMART range at lower capacity.
Related machines
Request a quote
Pricing, configuration and machine selection for busbar processing. An engineer replies within one business day, with no obligation.
