Bending machines
EMAC-BB-S12
Servo 3D busbar bending machine, 400 kN, ±0.1°, no hydraulics
- Nominal force
- 400kN

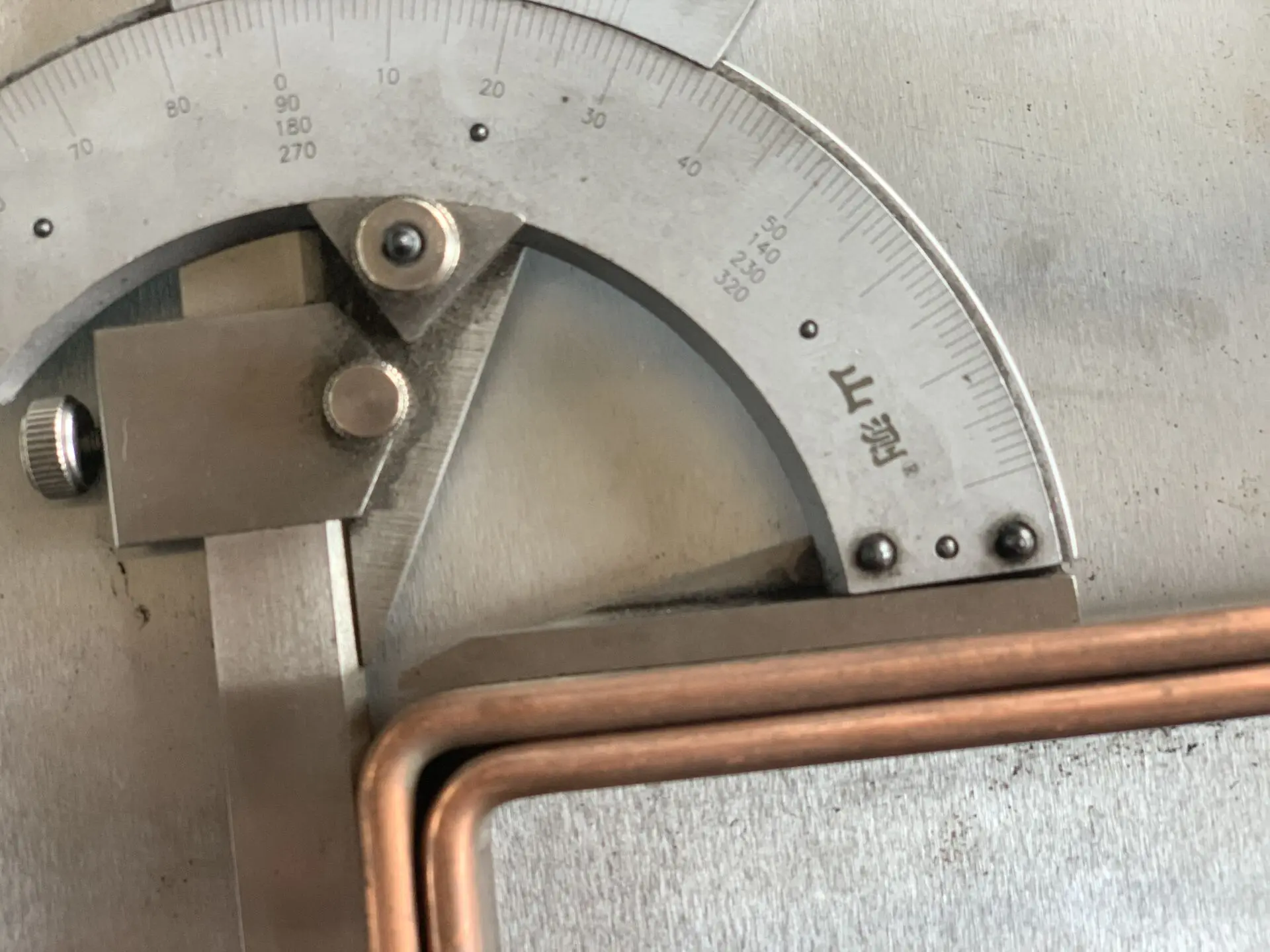

- Bending accuracy
- ±0.1°
- Bending capacity (W × T)
- 200 × 16mm
Overview

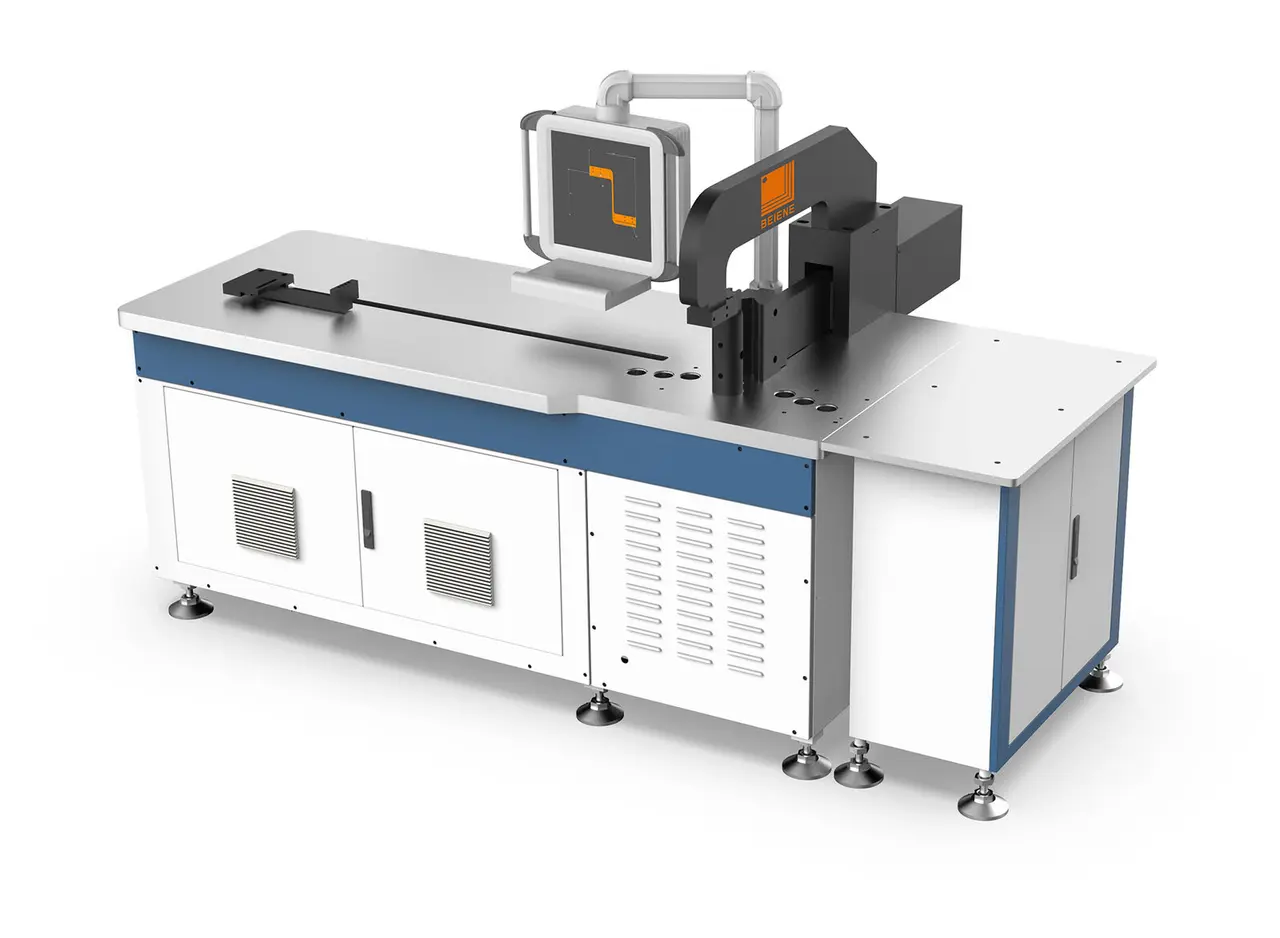

EMAC-BB-S12 is the pure servo configuration of the 400 kN bending platform, holding the same ±0.1° bending accuracy on bar up to 200 × 16 mm. Maximum bending stroke is 250 mm, side gauge stroke 1200 mm at 80 m/min, and maximum bending angle 90°. With no hydraulic station there is no oil to manage, idle power draw is lower and noise is reduced, which suits a clean assembly area and an intermittent duty cycle. Electronic springback compensation and one-touch die calibration are standard. Installed power is 6.25 kW.
Gallery
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Force | ||
| Nominal force | 400 | kN |
| Accuracy | ||
| Bending accuracy | ±0.1 | ° |
| Capacity | ||
| Maximum bending stroke | 250 | mm |
| X axis stroke | 1200 | mm |
| Minimum U-bend inner width | 40 | mm |
| Maximum bending angle | 90 | ° |
| Bending capacity (W × T) | 200 × 16 | mm |
| Speed | ||
| Side gauge speed (X axis) | 80 | m/min |
| Bending head speed (Y axis) | 0–5 | m/min |
| Power | ||
| Total installed power | 6.25 | kW |
| Dimensions and weight | ||
| Machine dimensions (L × W) | 2600 × 1500 | mm |
| Machine weight | 2600 | kg |
Features
- Pure servo drive — no hydraulic oil to manage
- Electronic die springback compensation
- One-touch die calibration
- Reads 3D and 2D drawings directly — no re-drawing step
- AIRLINK real-time drawing and file sharing between office and machine
- Ships fully assembled — no on-site installation or commissioning required
- Online video training
- Remote diagnosis and service
Key components
| Component | Supplier | Origin |
|---|---|---|
| PLC and control | Siemens | Germany |
| Sensors | Siemens | Germany |
| Servo motors | Siemens | Germany |
| Servo drives | Siemens | Germany |
| Linear guideways | HIWIN | Taiwan |
| Ball screws | HIWIN | Taiwan |
| Bearings | NSK | Japan |
Processes
Industries
Standards referenced
Frequently asked questions
- Hybrid hydraulic or pure servo?
- Pure servo draws less energy at idle, runs quieter and has no oil to manage, which suits a clean shop and an intermittent duty cycle. The hybrid station holds force better at full stroke on heavy sections and costs less. Both hold ±0.1°. Work that sits near the top of the capacity envelope most days is better served by the hybrid.
